High-Gain FPV Lollipop Antenna

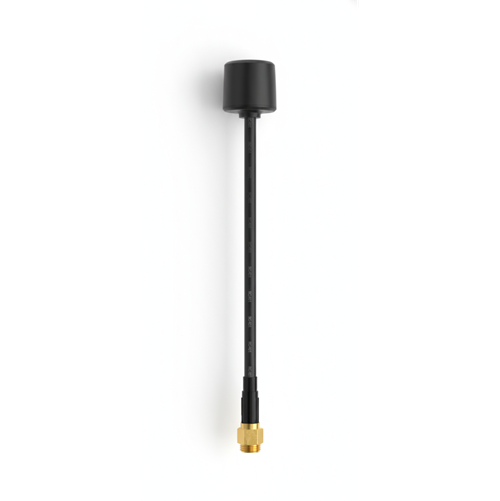

Designed for high-performance video transmission in the 5.8 GHz band, the WAHX-A638 offers excellent gain and omnidirectional coverage in a durable, compact form factor. Its "lollipop" design is optimized for clarity and range in demanding FPV applications.
Technical Specifications
|
Frequency Range |
5750-5850 MHz |
|
Peak Gain |
3 dBi |
|
VSWR |
≤ 2.0 @ 5.8 GHz |
|
Polarization |
RHCP (Right-Hand Circular) |
|
Radiation Pattern |
Omnidirectional |
|
Impedance |
50Ω |
|
Connector |
SMA Male |
|
Dimensions |
17(Ø)mm * 17.5mm(Antenna only) |
|
Operating Temperature |
-30°C to 85°C |
|
Weight |
13.2g |
Performance Data (at 5850 MHz)

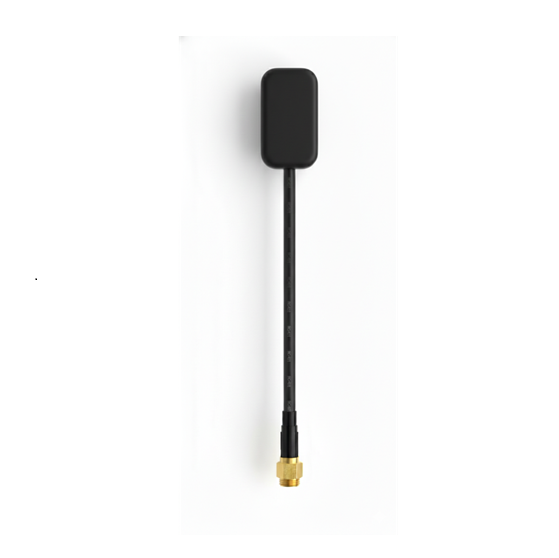

Designed for high-performance video transmission in the 1.7 GHz band, the WAHX-A647 offers excellent gain and omnidirectional coverage in a durable, compact form factor. Its Streamlined and long design is optimized for clarity and range in demanding FPV applications.
Technical Specifications
|
Frequency Range |
1670 MHz (± 50 Mhz) |
|
Peak Gain |
3 dBi |
|
Polarization |
Linear Polarization |
|
Radiation Pattern |
Omnidirectional |
|
Impedance |
50Ω |
|
Connector |
SMA Male |
|
Dimensions |
80 * 25 * 6mm (Antenna only) |
|
Operating Temperature |
-30°C to 85°C |
|
Weight |
23g |

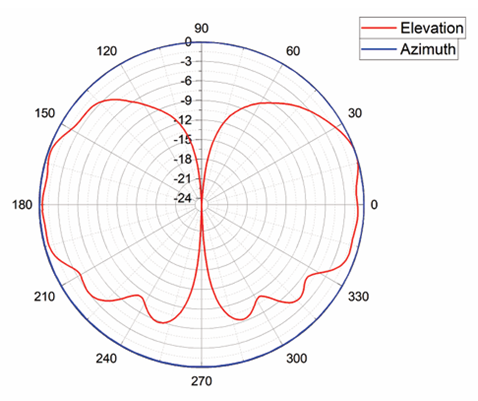

Performance Data (at 1670 MHz)
