WAHX-A647

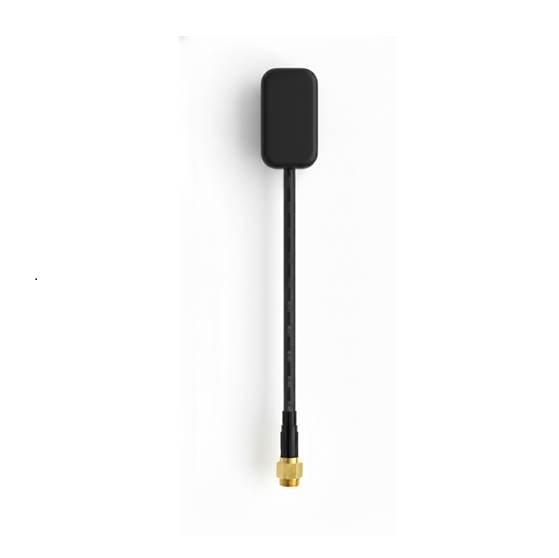

1.7 GHz High-Gain FPV Lollipop Antenna

Designed for high-performance video transmission in the 1.7 GHz band, the WAHX-A647 offers excellent gain and omnidirectional coverage in a durable, compact form factor. Its Streamlined and long design is optimized for clarity and range in demanding FPV applications.

Technical Specifications

Frequency Range	1670 MHz (± 50 Mhz)
Peak Gain	3 dBi
Polarization	Linear Polarization
Radiation Pattern	Omnidirectional
Impedance	50Ω
Connector	SMA Male
Dimensions	80 * 25 * 6mm (Antenna only)
Operating Temperature	-30°C to 85°C
Weight	23g

Performance Data (at 1670 MHz)

WAHX-A647-pattern
