HOME PRODUCT Antenna UAV / FPV / Marine WAHX-A645

WAHX-A645

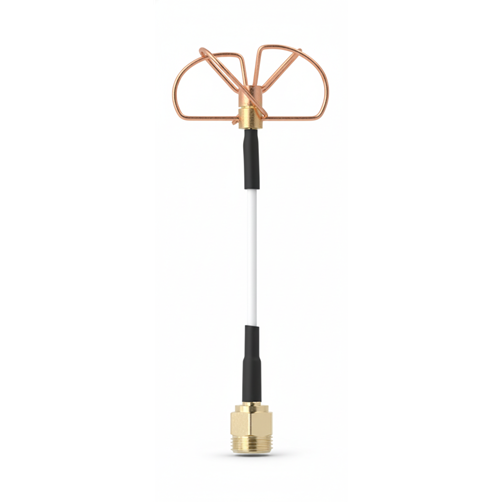

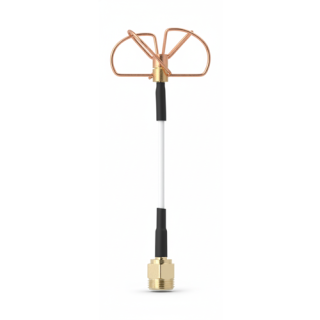

2.4 GHz FPV Cloverleaf Antenna

The WAHX A645 is engineered for robust and reliable control and video links in the 2.4 GHz band. Its cloverleaf design provides Right-Hand Circular Polarization (RHCP), significantly reducing multipath interference and signal dropouts for a stable, clear connection.

Technical Specifications

Frequency Range	2400-2500 MHz
Peak Gain	3 dBi
VSWR	≤ 1.5
Polarization	RHCP (Right-Hand Circular)
Radiation Pattern	Omnidirectional
Impedance	50Ω
Connector	SMA Male
Dimensions	105 x 50 mm (Antenna only)
Operating Temperature	-30°C to 85°C
Weight	33.6g

Performance Data (at 2450 MHz)
