4 Leaf / L Band 1.5-2.5GHz

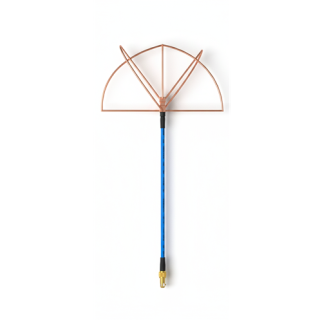

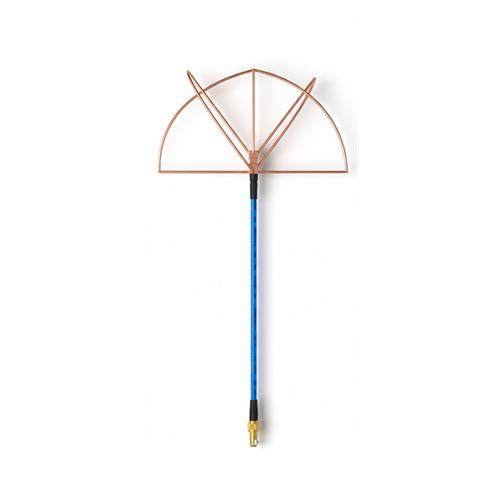

Optimized for the Sub-1 GHz band, the WAHX-A 646 delivers exceptional long-range performance for command -and -control links. The circular polarization is ideal far penetrating obstacles and maintaining signal integrity over extended distances, making it suitable for mission-critical operations.
Technical Specifications
|
Frequency Range |
915 MHz |
|
Peak Gain |
3 dBi |
|
VSWR |
≤ 1.5 @ 915 MHz |
|
Polarization |
RHCP (Right-Hand Circular) |
|
Radiation Pattern |
Omnidirectional |
|
HPBW |
90° |
|
Impedance |
50Ω |
|
Connector |
SMA Male |
|
Dimensions |
165 x 70mm |
|
Operating Temperature |
-30°C to 85°C |
|
Weight |
43.9g |
Performance Data (at 915 MHz)

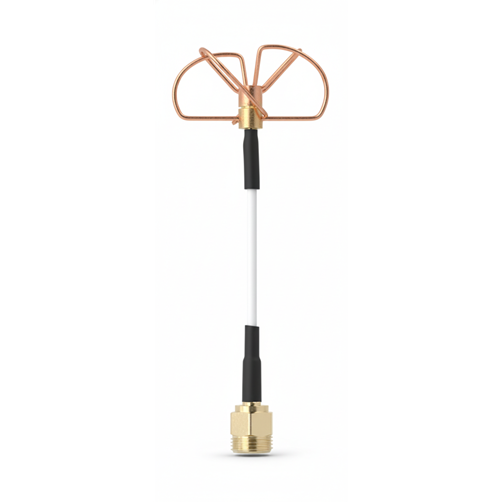

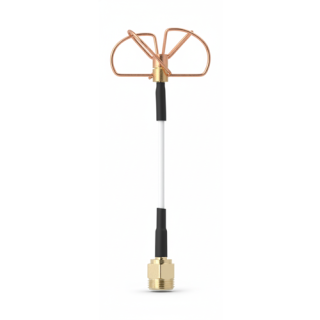

The WAHX A645 is engineered for robust and reliable control and video links in the 2.4 GHz band. Its cloverleaf design provides Right-Hand Circular Polarization (RHCP), significantly reducing multipath interference and signal dropouts for a stable, clear connection.
Technical Specifications
|
Frequency Range |
2400-2500 MHz |
|
Peak Gain |
3 dBi |
|
VSWR |
≤ 1.5 |
|
Polarization |
RHCP (Right-Hand Circular) |
|
Radiation Pattern |
Omnidirectional |
|
Impedance |
50Ω |
|
Connector |
SMA Male |
|
Dimensions |
105 x 50 mm (Antenna only) |
|
Operating Temperature |
-30°C to 85°C |
|
Weight |
33.6g |
Performance Data (at 2450 MHz)
