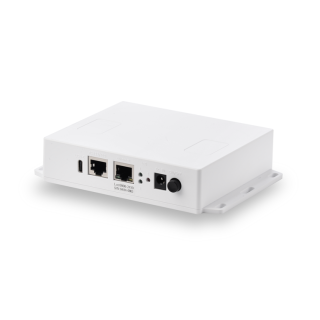

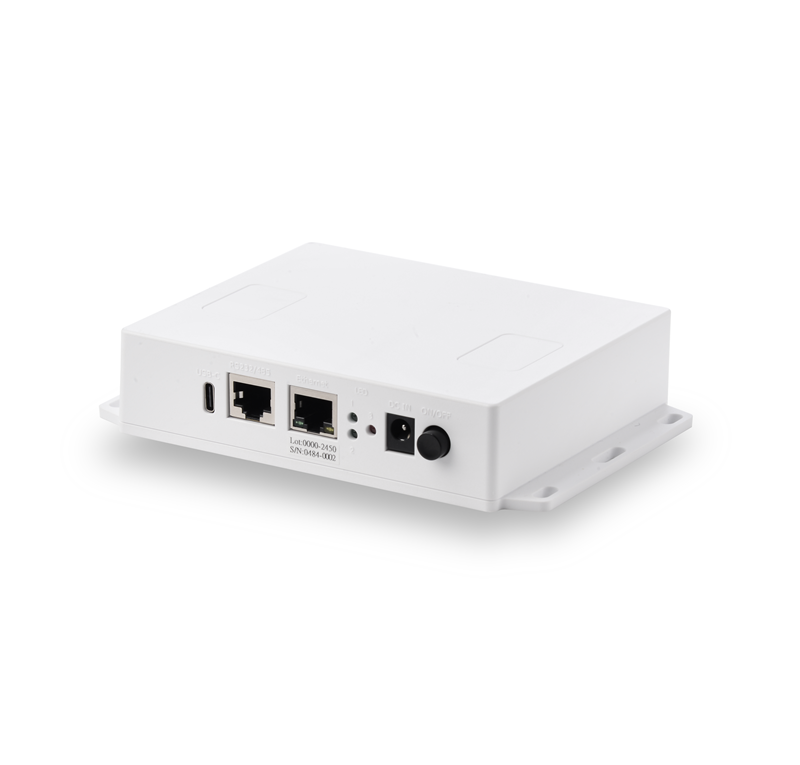

RFID Controller
Extensive Protocol Support
Supports multiple interfaces and protocols (SECS/GEM, Ethernet, Modbus, RS-232/485, CAN Bus, and USB). Fully customizable to meet specific integration requirements.
High Scalability & Connectivity
A single system supports up to 5 E-Racks and 200 readers simultaneously, significantly reducing connection complexity and point-of-failure.
Streamlined Power Management
High-efficiency design allows one controller to power up to 200 readers, minimizing the need for extensive power infrastructure and reducing installation costs.
Versatile USB-C Expansion
Integrated USB-C interface for multi-functional expansion. Supports external NFC readers for secure identity authentication and access control.
| Specifications | Controller Pro |
|---|---|
| Body Size(mm) | 120 x 110 |
| Weight (g) | 220 |
| Operating temperature (℃) | +0 ~ +65 |
| Storage temperature (℃) | -40 ~ +125 |
| Humidity | 5% to 95% (non-condensing) |
| Functionality | uplink communication |
| Power Source | 24 VDC |
| Error detection | CRC |
| Encryption | 3DES / AES |
| Connector (to Reader) | RJ-12 (6P6C) |
| Connector (uplink) | RS-232 / RS-485 / Ethernet / USB-C / UART / Wi-Fi and customizable |
| Protocol (uplink) | TCP/IP / SECS / ModBus and customizable |
