Mid-I-Bar_3 in 1 Antenna

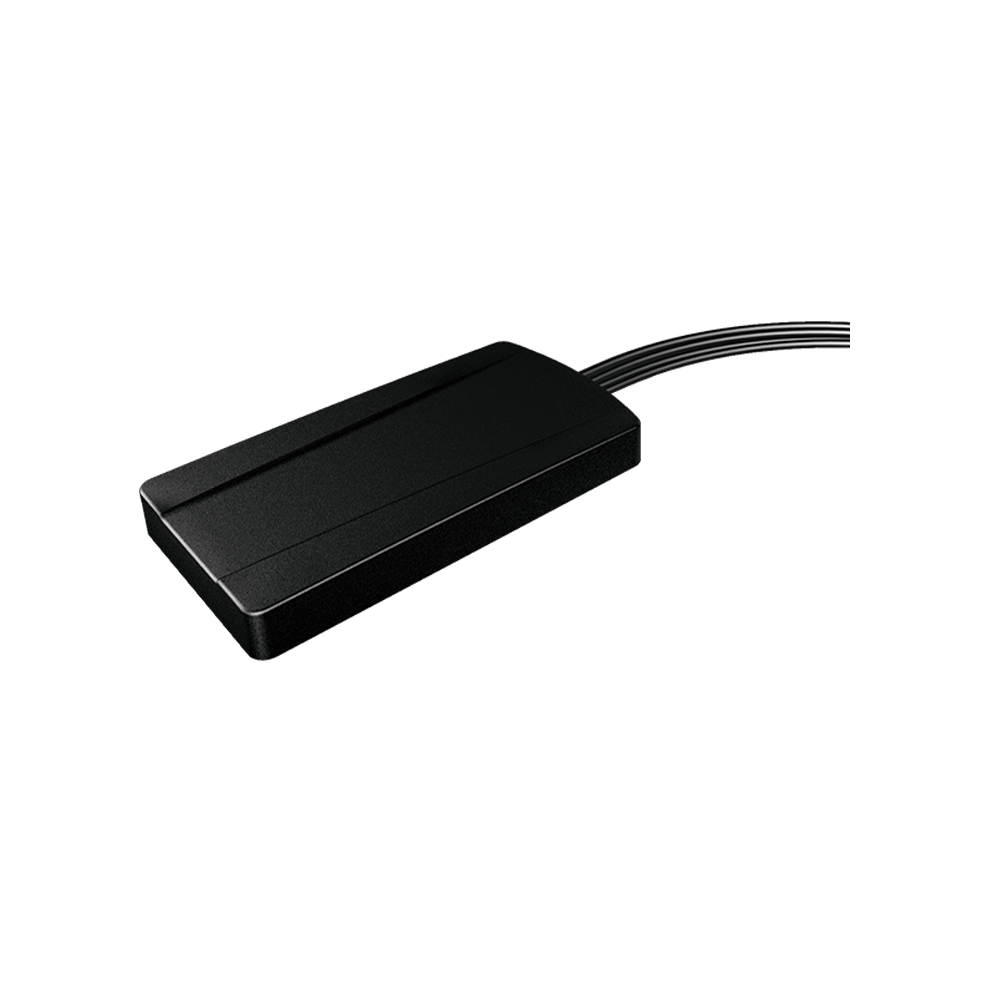

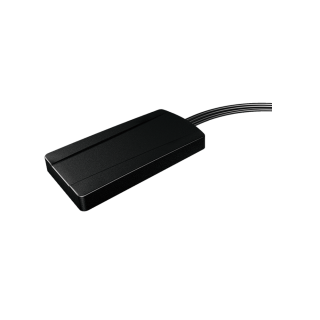

Mid I-BAR 3 in 1 Antenna

Mid I-BAR_3 in 1 Antenna
4G LTE / Wi-Fi 6 / GNSS
MS-A2-3O1-A
Frequencies Range
698-960/1710-2690MHz
2400-2500/5150-5850MHz
1559/1575.42/1602MHz
Peak Gain
6.0/4.0 dBi
4.5/3.0 dBi
1.0/1.0/3.0 dBi
VSWR
≤ 2.5
≤ 2.0
≤ 3.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA or your specification
Dimensions
136.2mm * 72.4mm*13.9mm (Antenna only)
Operating Temperature
-40°C  to  85°C
Weight
186g

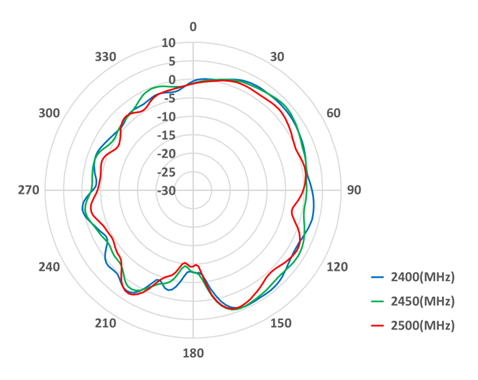

Performance Data
MS-A2-301-A

MS-A2-3O2-A
Frequencies Range
698-960/1710-2690MHz
1559/1575.42/1602MHz
Peak Gain
6/4 dBi
1/1/3 dBi
VSWR
≤ 2.5
≤ 3.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA or your specification
Dimensions
136.2mm * 72.4mm*13.9mm (Antenna only)
Operating Temperature
-40°C  to  85°C
Weight
186g

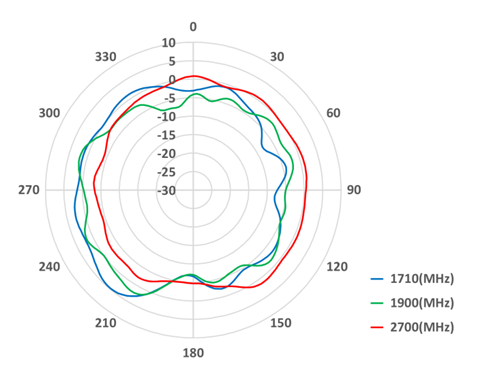

Performance Data
MS-A2-302-A
