Mid Jellyfis_5 in 1 Antenna

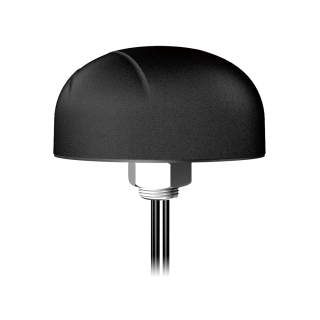

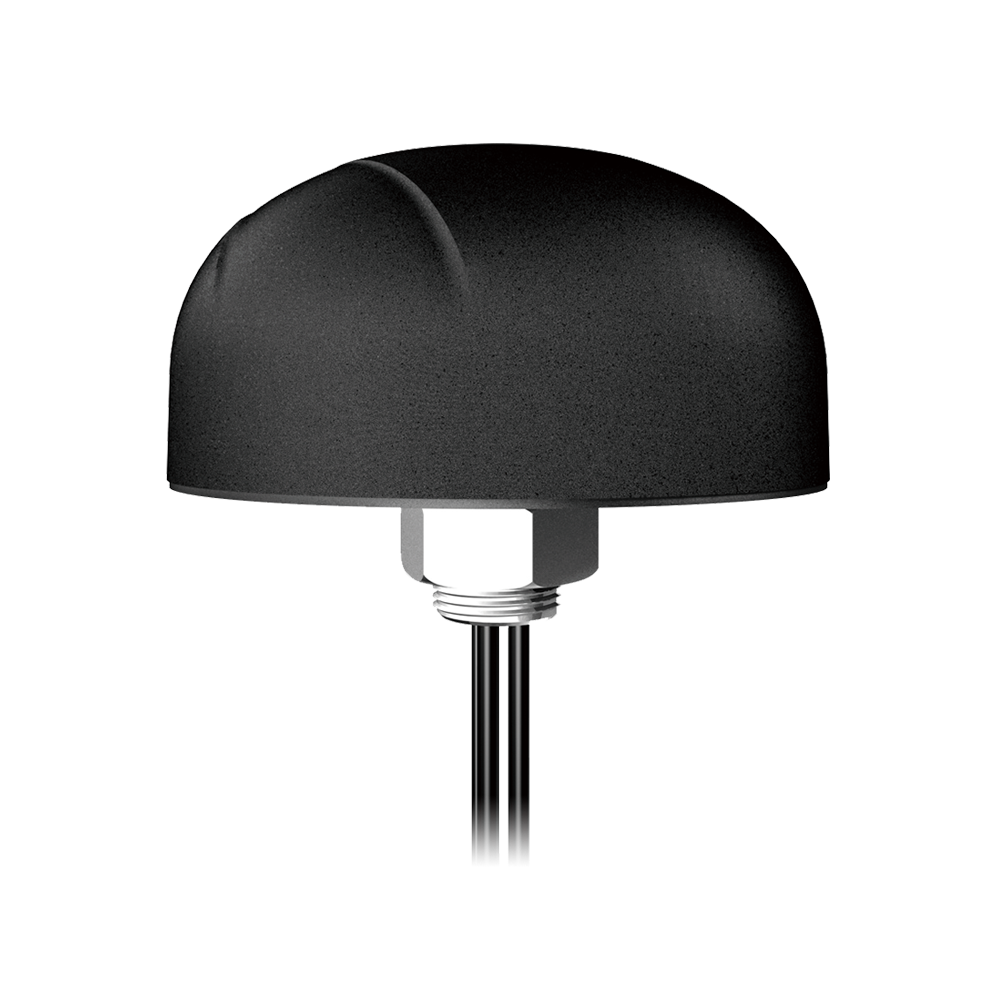

Mid Jellyfish 5 in 1 Antenna

Mid Jellyfish 5 in 1 Antenna
4G LTE MIMO / Wi-Fi 6 MIMO / GNSS
MS-A2-5Q1-A
Frequencies Range
698-960/1710-2690MHz
2400-2500/5150-5850MHz
1559/1575.42/1602MHz
Peak Gain
3/3 dBi
3/5 dBi
2/1/1 dBi
VSWR
≤ 4.0
≤ 4.0
≤ 2.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA/FAKRA or your specification
Dimensions
143(Ø)mm * 63.5mm(Antenna only)
Operating Temperature
-40°C  to  85°C
Weight
740g

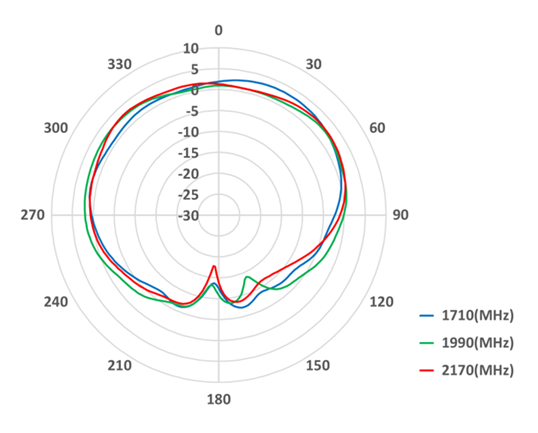

Performance Data
MS-A2-5Q1-A
