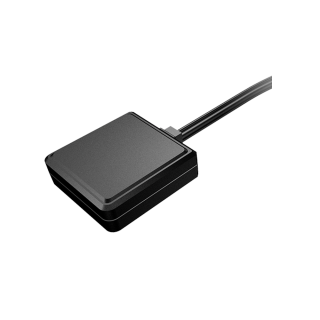

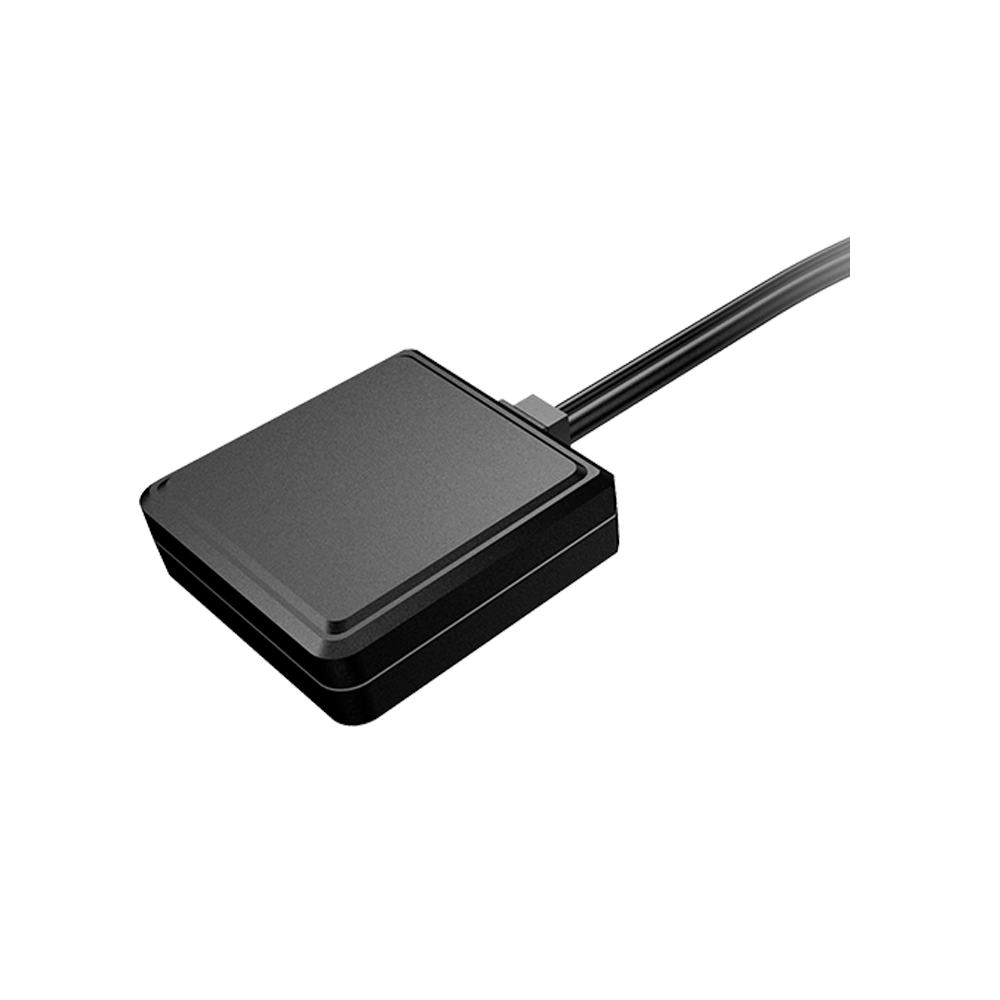

Flat Square 2 in 1 Antenna

Flat Square 2 in 1 Antenna

MS-A2-2J1-A
Wi-Fi 6 / GNSS
Frequencies Range
2400-2500/5150-5850MHz
1561/1575.42/1602MHz
Peak Gain
2.5/1.5 dBi
3.5 dBi
VSWR
≤ 2.0
≤ 3.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA or your specification
Dimensions
55mm * 55mm*23.1mm (Antenna only)
Operating Temperature
-40°C  to  85°C
Weight
103g

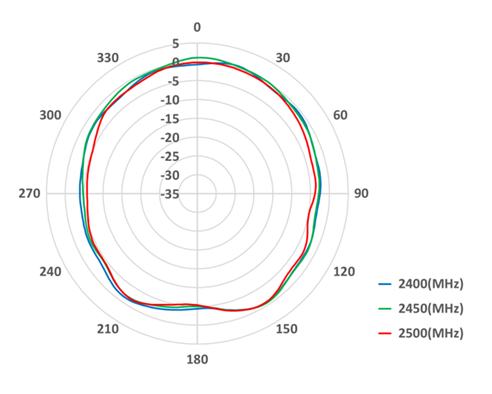

Performance Data
MS-A2-2J1-A
MS-A2-2J2-A
DSRC / GNSS
Frequencies Range
5850-5950MHz
1561/1575.42/1602MHz
Peak Gain
2.0 dBi
3.5 dBi
VSWR
≤ 2.0
≤ 3.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA or your specification
Dimensions
55mm * 55mm*23.1mm (Antenna only)
Operating Temperature
-40°C  to  85°C
Weight
103g

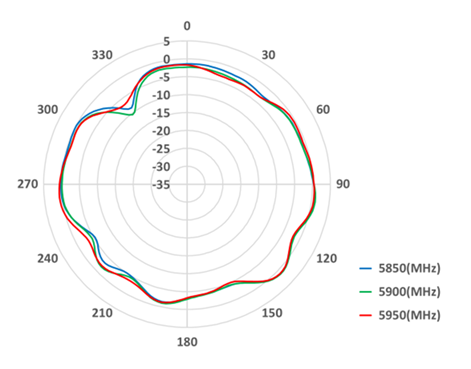

Performance Data
MS-A2-2J2-A
MS-A2-2J3-A
4G LTE / GNSS
Frequencies Range
698-960/1710-2690MHz
1561/1575.42/1602MHz
Peak Gain
3.5/3.5/1.5 dBi
3.5 dBi
VSWR
≤ 5.5/4.4/4.0
≤ 3.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA or your specification
Dimensions
55mm * 55mm*23.1mm (Antenna only)
Operating Temperature
-40°C  to  85°C
Weight
103g

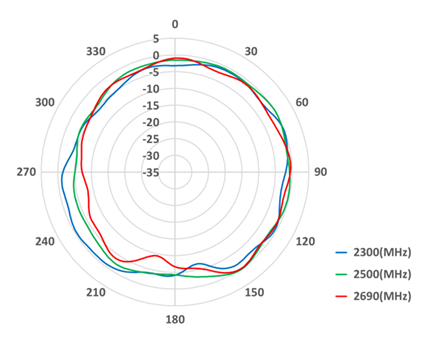

Performance Data
MS-A2-2J3-A
