Small I-Bar Antenna

MS-A0-DP1-A
Small I-Bar Antenna DSRC
Frequencies Range
5850-5950MHz
Peak Gain
0.5 dBi
VSWR
≤ 2.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA / FAKRA or your specification
Dimensions
105.1mm 30.1mm 7.9mm (Antenna only)
Operating Temperature
-30°C  to  85°C
Weight
36g

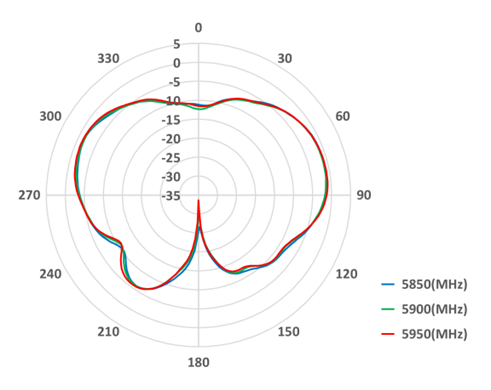

Performance Data
MS-A0-DP1-A

MS-A0-FP1-A
Small I-Bar Antenna Wi-Fi 6
Frequencies Range
2400-2500/5150-5850MHz
Peak Gain
2.5/3.5 dBi
VSWR
≤ 2.0
Polarization
Linear
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA / FAKRA or your specification
Dimensions
105.mm * 30.1mm * 7.9mm (Antenna only)
Operating Temperature
-30°C  to  85°C
Weight
36g

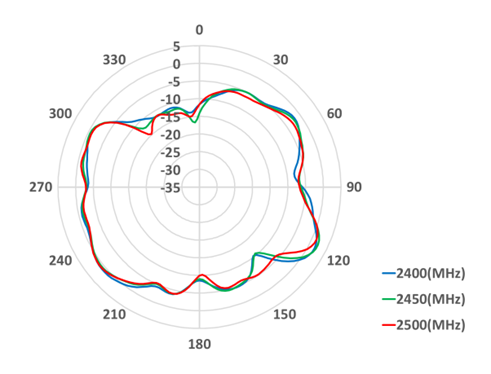

Performance Data
MS-A0-FP1-A
