Home PRODUCT Antenna 4G/5G New Sword LTE Antenna
  • MS-A0-GZ2-A_OK
MS-A0-GZ2-A_OK

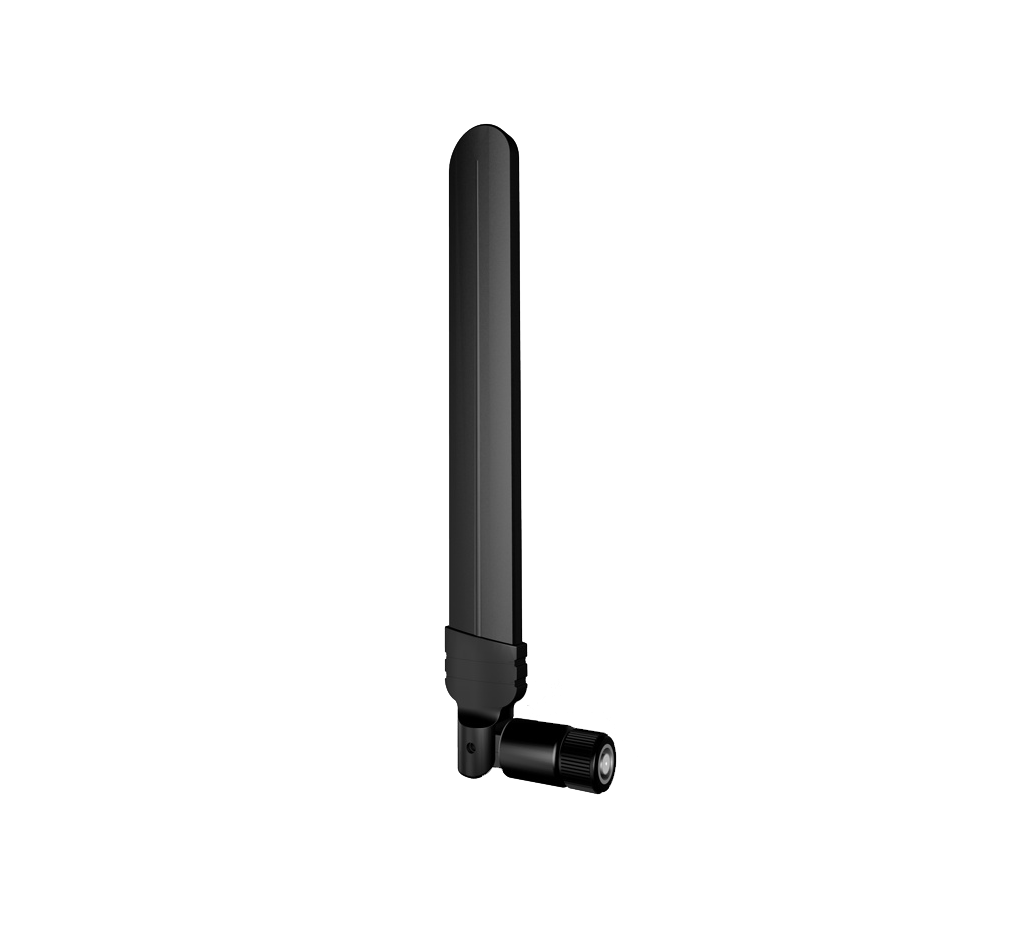

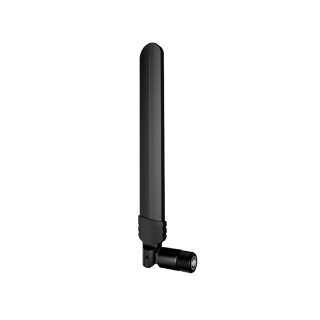

New Sword LTE Antenna

MS-A0-GW142-A
New Sword LTE 615-7125MHz Antenna
Frequencies Range
615-7125MHz
Peak Gain
4.4 dBi
VSWR
≤ 3.0
Polarization
NA
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Male
Dimensions
176mm * 18mm * 6.1mm (Antenna only)
Operating Temperature
-30°C  to  85°C
Weight
50g

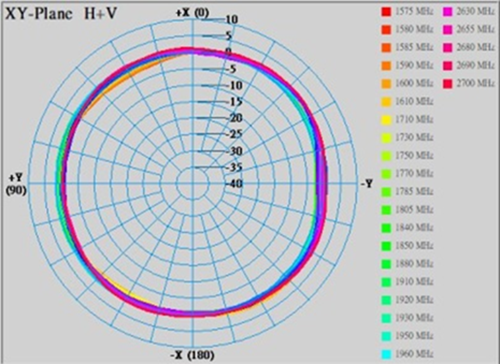

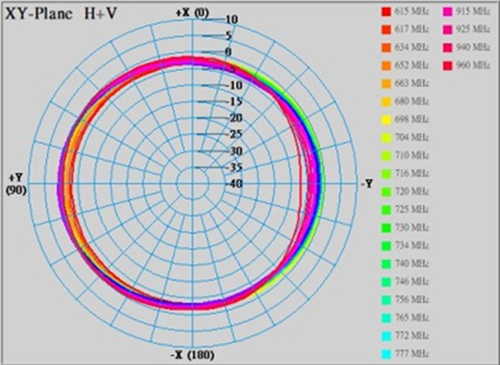

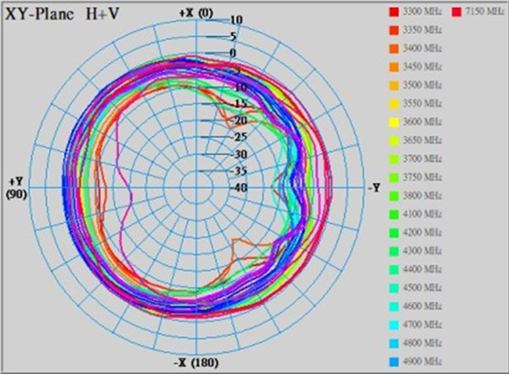

Performance Data
MS-A0-GW142-A_01
MS-A0-GW142-A_02
MS-A0-GW142-A_03

MS-A0-GW141-A
New Sword LTE 615-5925MHz Antenna
Frequencies Range
615-5925MHz
Peak Gain
2.8 dBi
VSWR
≤ 3.0
Polarization
NA
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Male
Dimensions
176mm * 18mm * 6.1mm (Antenna only)
Operating Temperature
-30°C  to  85°C
Weight
50g

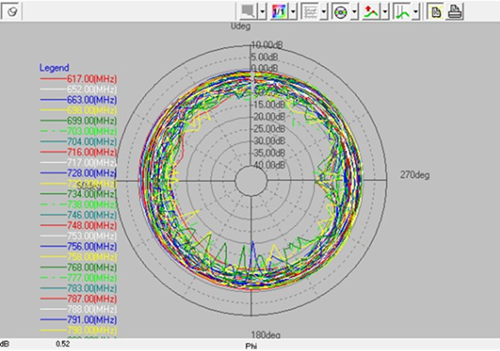

Performance Data
  MS-A0-GW141-A
