Rod Cover Antenna

MS-A0-FW181-A
3+1Rod Cover Wi-Fi 2400-2500MHz Antenna
Frequencies Range
2400-2500MHz
Peak Gain
2 dBi
VSWR
≤ 1.92
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Straight Plug Reverse
Dimensions
197.5mm
Operating Temperature
-10°C  to  60°C
Weight
30g

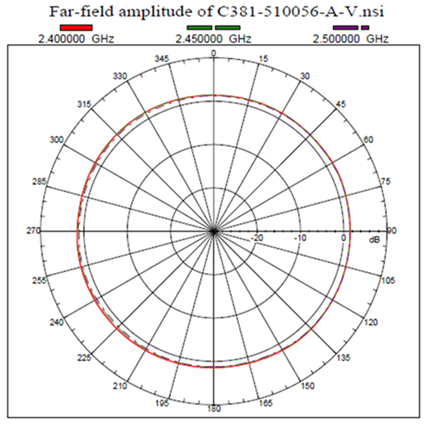

Performance Data
MS-A0-FW181-A
MS-A0-FW51-A
4+2Circle Rod CoverWi-Fi 2400-2500, 4900-5825MHz Antenna
Frequencies Range
2400-2500,4900-5825MHz
Peak Gain
3/3 dBi
VSWR
≤ 1.92
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Straight Plug Reverse
Dimensions
156mm
Operating Temperature
-10°C  to  60°C
Weight
50g

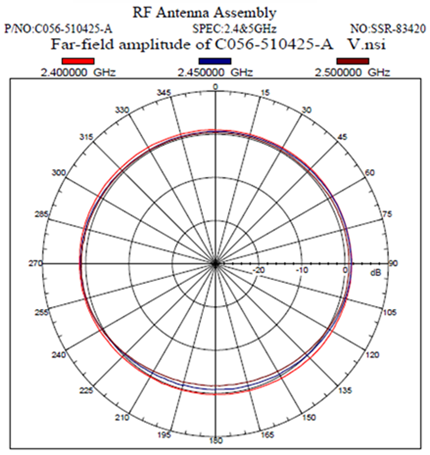

Performance Data
MS-A0-FW51-A

MS-A0-FW11-A
7dBi Rod Cover Wifi 2400-2500 MHz Antenna
Frequencies Range
2400-2500MHz
Peak Gain
7 dBi
VSWR
≤ 1.92
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Straight Plug Reverse
Dimensions
279mm*Ø13
Operating Temperature
-10°C  to  50°C
Weight
50g

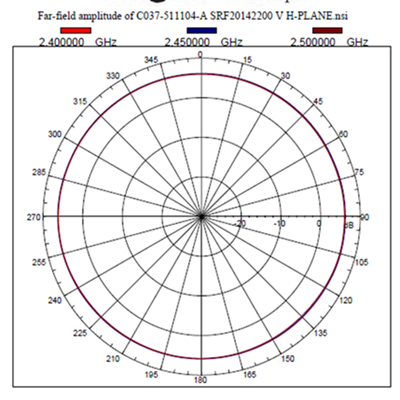

Performance Data
MS-A0-FW11-A
