Home PRODUCT Antenna Wi-Fi / BT Baseball Bat Antenna

Baseball Bat Antenna

MS-A0-FW161-A
Thin Baseball Bat Long Wi-Fi 2G 2400-2500MHz Antenna
Frequencies Range
2400-2500MHz
Peak Gain
5 dBi
VSWR
≤ 1.92
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Straight Plug Reverse
Dimensions
197.5mm
Operating Temperature
-10°C  to  60°C
Weight
30g

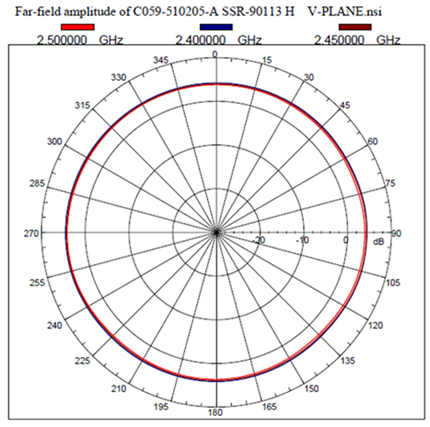

Performance Data
MS-A0-FW161-A
MS-A0-FW152-A
Large Baseball Bat Wi-Fi Tri Band 2400-2500, 5150-7125MHz Antenna
Frequencies Range
2400-2500, 5150-7125MHz
Peak Gain
4.38 dBi
VSWR
≤ 2.0
Polarization
NA
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Male
Dimensions
196mm
Operating Temperature
-30°C  to  85°C
Weight
50g

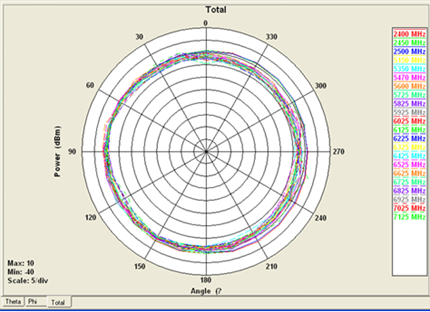

Performance Data
 MS-A0-FW152-A

MS-A0-FW151-A
Large Baseball Bat Wi-Fi 2-5G 4900-5850MHz Antenna
Frequencies Range
4900-5850MHz
Peak Gain
5 dBi
VSWR
≤ 1.92
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Plug Reverse
Dimensions
196mm
Operating Temperature
-20°C  to  65°C
Weight
50g

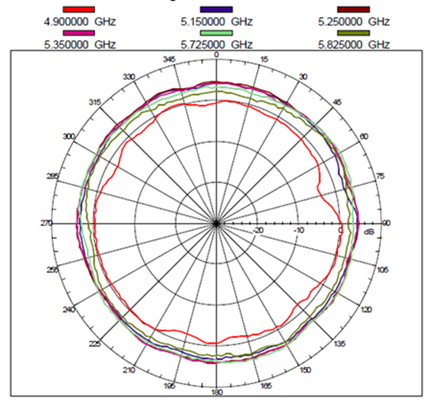

Performance Data
MS-A0-FW151-A
MS-A0-FW61-A
Small Baseball Bat Wi-Fi 2G 2400-2500MHz Antenna
Frequencies Range
2400-2500MHz
Peak Gain
3 dBi
VSWR
≤ 1.92
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Straight Plug Reverse
Dimensions
136mm
Operating Temperature
-10°C  to  60°C
Weight
20g

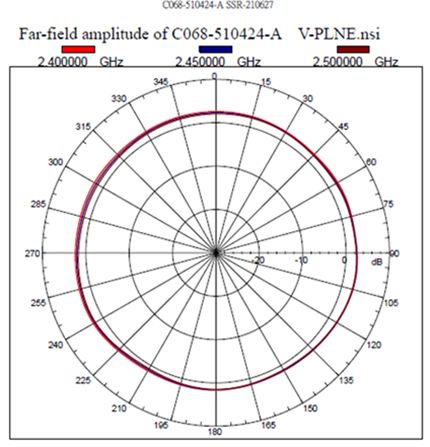

Performance Data
MS-A0-FW61-A
