Home PRODUCT Antenna Wi-Fi / BT New Sword Antenna

New Sword Antenna

MS-A0-FW142-A
New Sword Wi-Fi Tri Band 2400-2500, 5150-7125MHz Antenna
Frequencies Range
2400-2500, 5150-7125MHz
Peak Gain
4.38 dBi
VSWR
≤ 2.0
Polarization
NA
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Male
Dimensions
176mm*18mm*6.1mm(Antenna only)
Operating Temperature
-30°C  to  85°C
Weight
50g

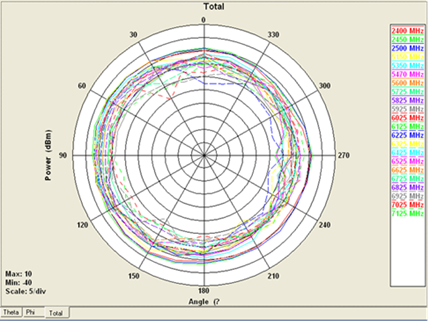

Performance Data
MS-A0-FW142-A
MS-A0-FW141-A
New Sword Wi-Fi 2-5G 2400-2500, 4900-5825MHz Antenna
Frequencies Range
2400-2500,4900-5825MHz
Peak Gain
3/5 dBi
VSWR
≤ 2.1
Polarization
NA
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
I-PEX
Dimensions
176mm*18mm*9.35mm
Operating Temperature
-10°C  to  60°C
Weight
50g

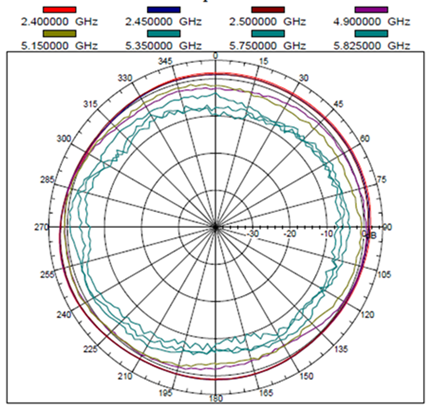

Performance Data
MS-A0-FW141-A
