Home PRODUCT Antenna Wi-Fi / BT Indoor Water Proof Antenna

Indoor Water Proof Antenna

MS-A0-FW71-A
Indoor Water Proof(Short) Wi-Fi 2G 2400-2500MHz Antenna
Frequencies Range
2400-2500MHz
Peak Gain
1.8 dBi
VSWR
≤ 1.92
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Straight Plug Reverse
Dimensions
110mm*Ø13mm
Operating Temperature
-10°C  to  60°C
Weight
20g
Performance Data
MS-A0-FW71-A
MS-A0-FW31-A
Indoor Water Proof(Long) Wi-Fi 5G 4900-5825 MHz Antenna
Frequencies Range
4900-5825MHz
Peak Gain
5 dBi
VSWR
≤ 1.92
Polarization
Linear,Vertical
Radiation Pattern
Omnidirectional
Impedance
50Ω
Connector
SMA Straight Plug Reverse
Dimensions
191mm*Ø6.5
Operating Temperature
-10°C  to  60°C
Weight
50g

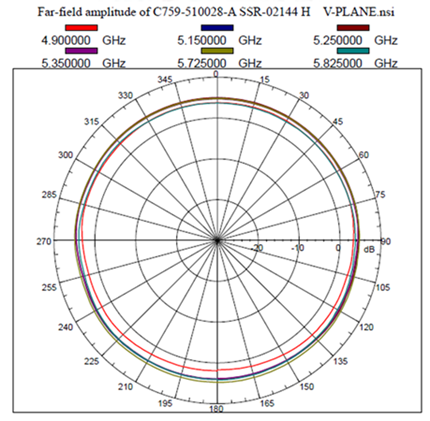

Performance Data
MS-A0-FW31-A
