Home PRODUCT Antenna 4G/5G Omni-Directional Antenna
  • MGA-MRS-3R-A-H Plane
  • MGA-MRS-3R-A-V Plane
  • MGA-MRS-3R-A-H Plane
  • MGA-MRS-3R-A-V Plane
MGA-MRS-3R-A-H Plane MGA-MRS-3R-A-V Plane

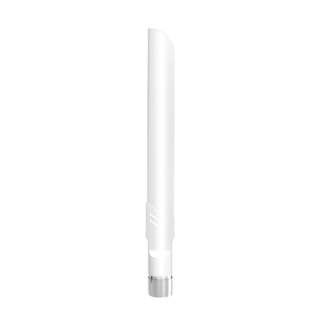

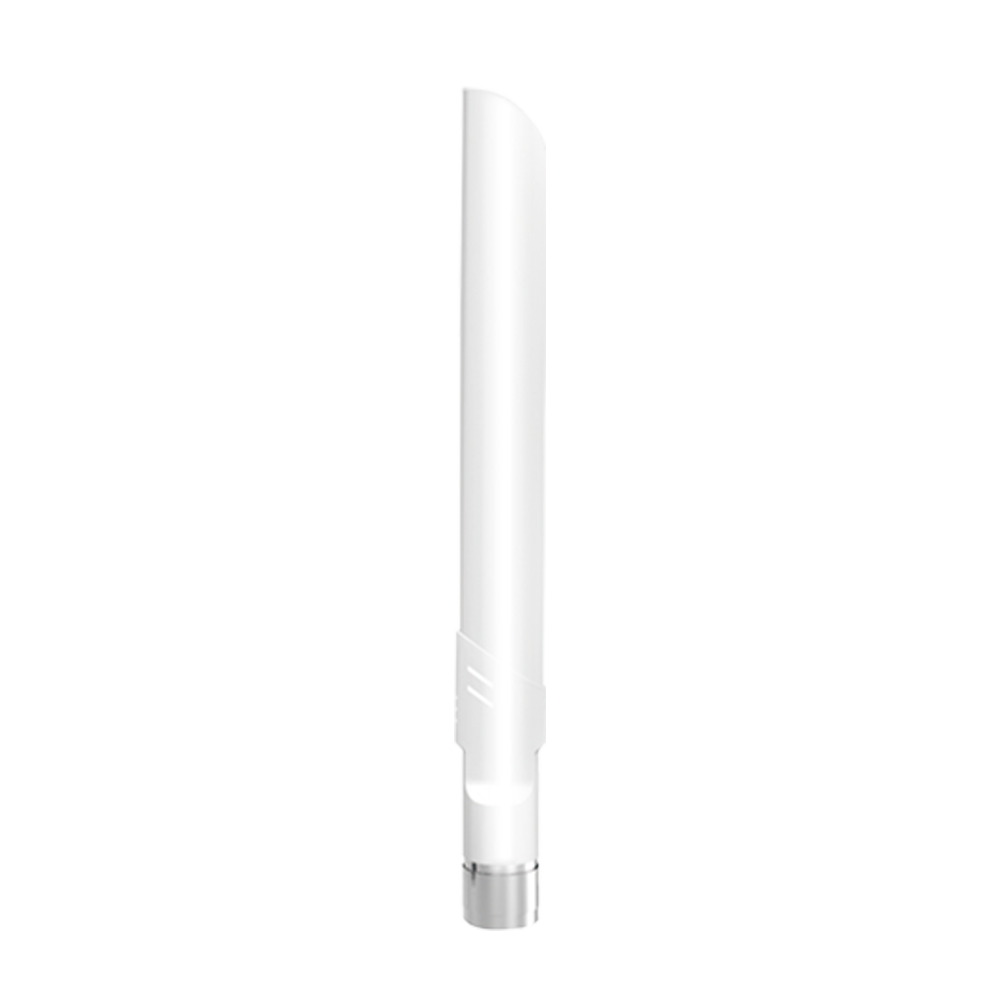

Omni-Directional Antenna



Model Name
MGA-FRS-6R-A
MGA-CDO-D5A
MGA-GRS-6R-A
MGA-MRS-3R-A

Frequencies Range
N77
LTE all band
N79
Sub-6
3300~4200 MHz
698~960/1710~2700 MHz
4400~5000 MHz
617~960/1575~6000 MHz
Peak Gain
6±0.5 dBi
 0~3±0.5 dBi
 6±0.5 dBi
 0~3±0.5 dBi
VSWR
≤ 1.92
 ≤ 3
≤ 1.92
< 3
Polarization
Vertical
Vertical
Vertical
Vertical
Radiation Pattern
Omnidirectional
Omnidirectional
Omnidirectional
Omnidirectional
Impedance
50Ω
50Ω
50Ω
50Ω
Connector
N-Type
N-Type
N-Type
N-Type
Dimensions
215mm*Ø22mm
215mm*Ø22mm
215mm*Ø22mm
 215mm*Ø22mm
Operating Temperature
-40°C  to  70°C
-40°C  to  70°C
-40°C  to  70°C
-40°C  to  70°C
Weight
> 70g
> 70g
> 70g
> 70g

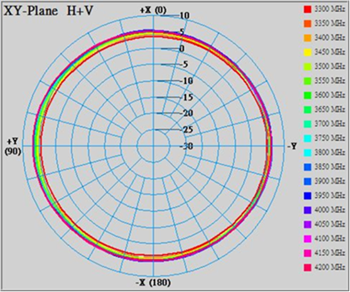

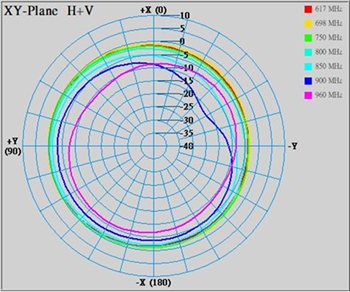

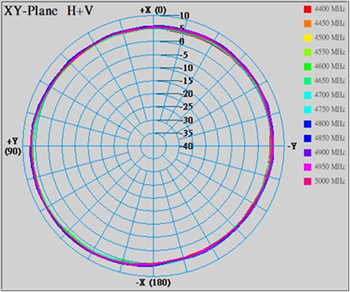

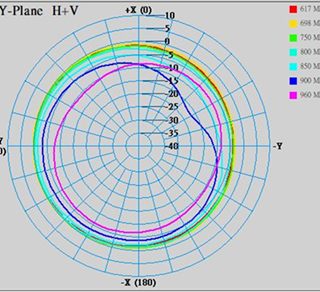

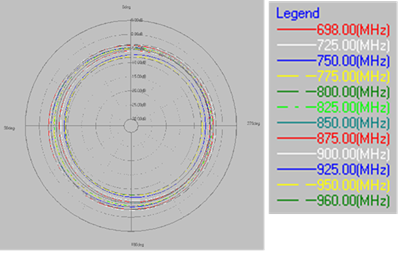

Performance Data: H Plane
 MGA-FRS-6R-A-H Plane MGA-CDO-D5A-H Plane MGA-GRS-6R-A-H Plane  MGA-MRS-3R-A-H Plane

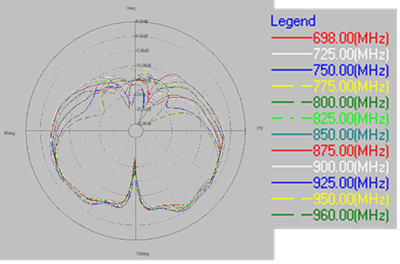

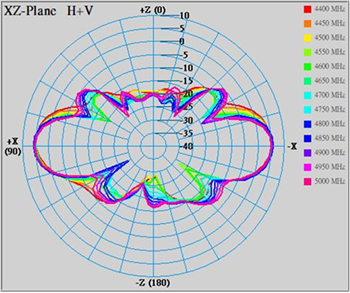

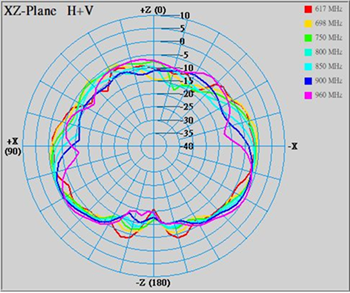

Performance Data: V Plane

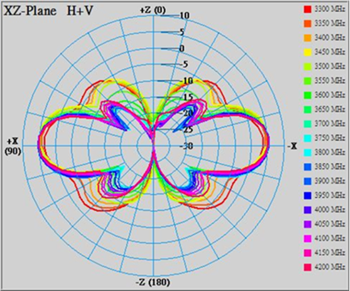

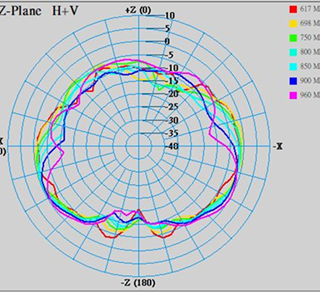

 MGA-FRS-6R-A-V Plane MGA-CDO-D5A-V Plane MGA-GRS-6R-A-V Plane  MGA-MRS-3R-A-V Plane
