Directional Antenna


Model Name
MGM-JDS-7X29-A
MGM-JDS-69-A
MGM-KDS-7X29-A
MGM-KDS-7X47-A
Frequencies Range
Wi-Fi 2.5G/6G 2x2 MIMO Directional Antenna
Wi-Fi 2.5G/6G 6x6 MIMO Directional Antenna
Wi-Fi 2.5G 2x2 MIMO Directional Antenna
Wi-Fi 2.5G 4x4 MIMO Directional Antenna
2400~2500/5150~7125MHz
2400~2500/5150~7125 MHz
2400~2500/4900~5850MHz
2400~2500/4900~5850MHz
Peak Gain
7/8±0.5 dBi
 6±0.5 dBi
 7/8±0.5 dBi
 7/8±0.5 dBi
VSWR
≤ 1.92
 ≤ 1.92
≤ 1.92
 NA
Polarization
Horizontal / Vertical
Horizontal / Vertical
Vertical
Vertical
Radiation Pattern
Directional
Directional
Directional
Directional
Impedance
50Ω
50Ω
50Ω
50Ω
Connector
N-Type
N-Type
N-Type
N-Type
Dimensions
206mm*177mm*45mm
160mm*254mm*80mm
206mm*177mm*45mm
378mm*263mm*58mm
Operating Temperature
-40°C  to  70°C
-40°C  to  70°C
-40°C  to  70°C
-10°C  to  60°C
Weight
TBD
TBD
TBD
TBD

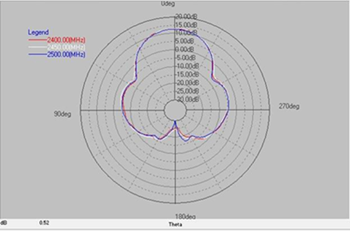

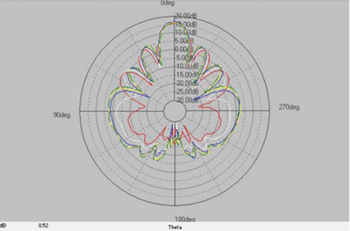

Performance Data: H Plane

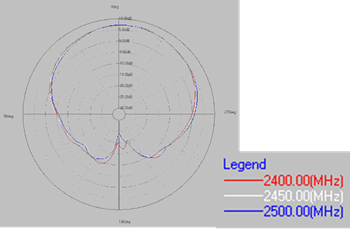

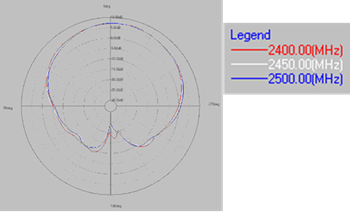

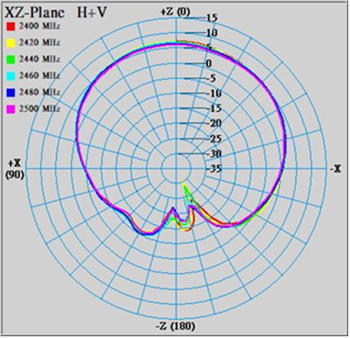

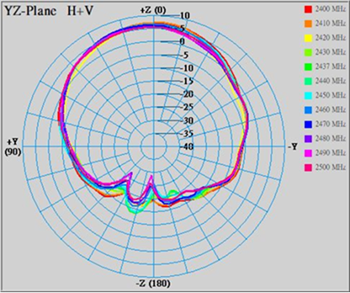

 MGM-JDS-7X29-A-H plane MGM-JDS-69-A-H plane MGM-KDS-7X29-A-H plane MGM-KDS-7X47-A-H plane

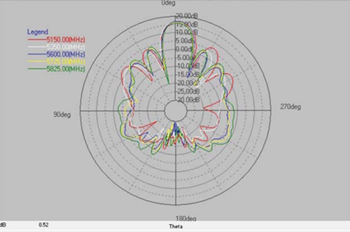

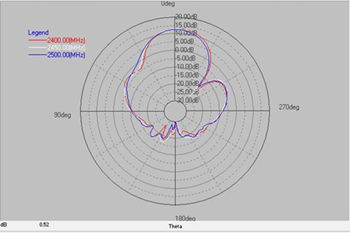

Performance Data: V Plane

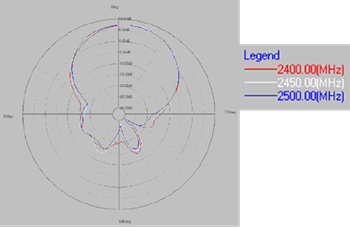

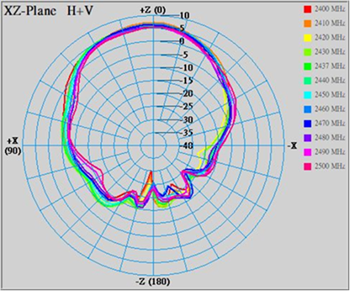

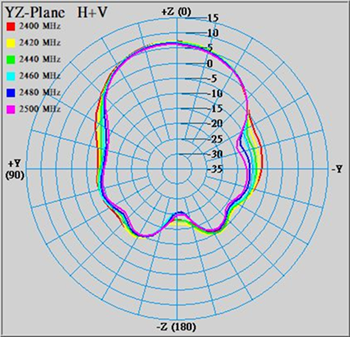

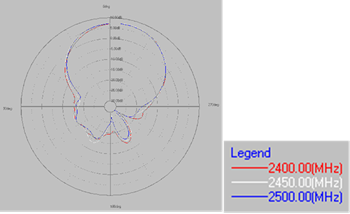

 MGM-JDS-7X29-A-V plane MGM-JDS-69-A-V plane MGM-KDS-7X29-A-V plane  MGM-KDS-7X47-A-V plane
