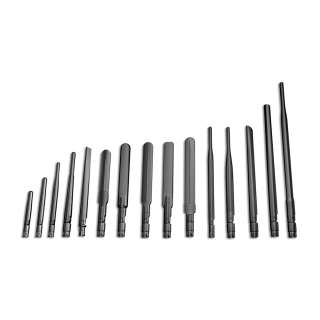

Omni-Directional Antenna

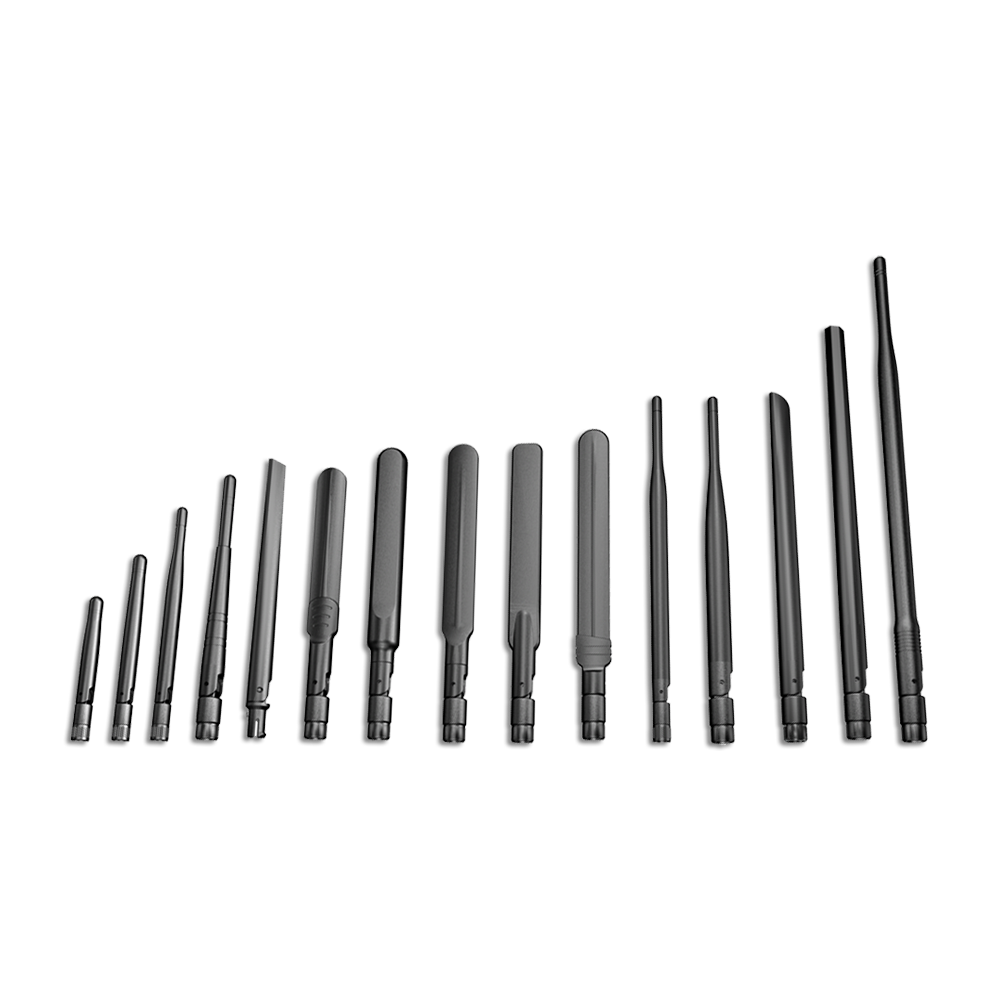

Omni-Directional Antenna
| Frequencies | Wi-Fi 6/6E/7, LTE, 5G FR1 full Band, LPWAN |
|---|---|
| Gain | 2dBi~7dBi |
| Detachable Connector | SMA TNC, QMA |
| Undetachable Connector | I-PEX 1L/4L, MMCX, MCX, SMA |
| Model Name |
MGA-KO-D6A |

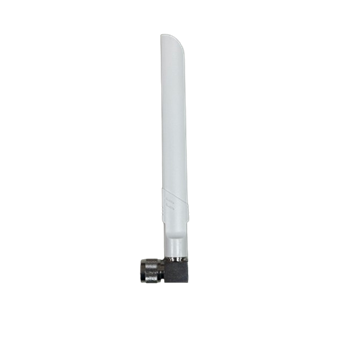

MGA-KRS-57R-A |

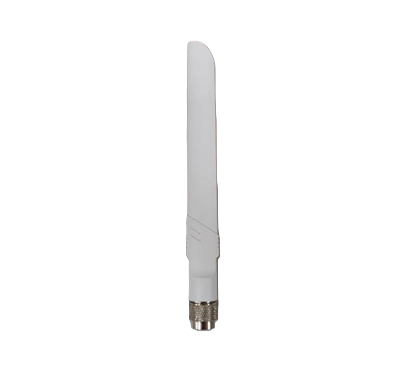

MGA-KRS-57R-B |
 |
 |
|
|
Frequencies Range |
Wi-Fi 2.4G/5G |
Wi-Fi 2.4G/5G |
Wi-Fi 2.4G/5G |
2400~2500/4900~5850
|
2400~2500/5150~5850 |
2400~2500/5150~5850 |
|
Peak Gain |
3/5±0.5
|
5/7±0.5 |
5/7±0.5 |
VSWR |
NA |
2.0 : 1 (max) |
2.0 : 1 (max) |
Polarization |
Vertical |
Vertical |
Vertical |
Radiation Pattern |
Omnidirectional |
Omnidirectional |
Omnidirectional |
Impedance |
50Ω |
50Ω |
50Ω |
Connector |
N-Type
|
N-Type
|
N-Type
|
Dimensions |
215mm*Ø22mm |
215mm*Ø22mm |
215mm*Ø22mm |
Operating Temperature |
-40°C to 70°C |
-40°C to 70°C |
-40°C to 70°C |
|---|---|---|---|
Weight
|
> 70g |
> 70g |
> 70g |

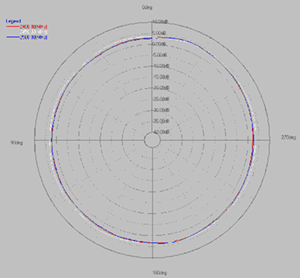

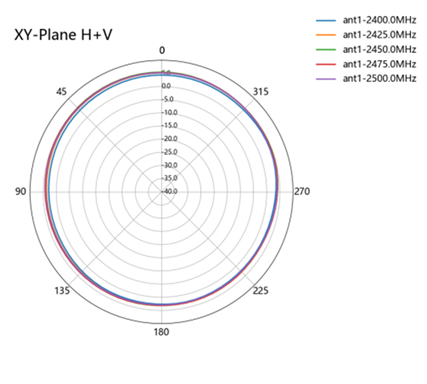

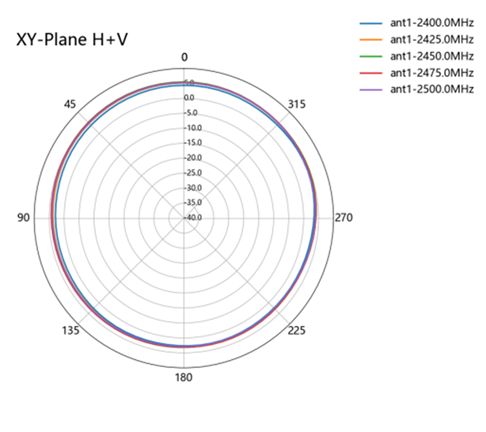

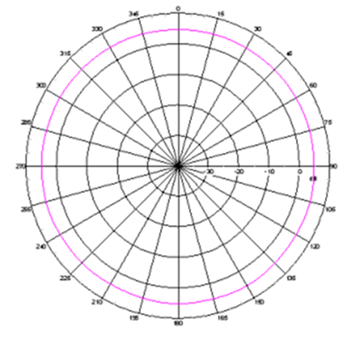

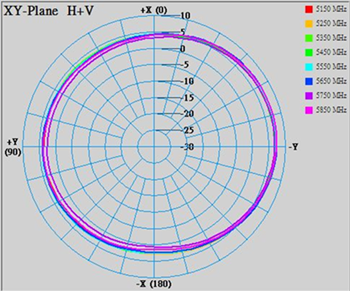

Performance Data: H Plane |
 |
 |
 |

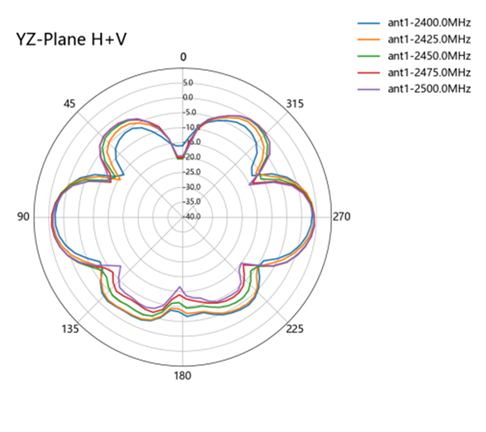

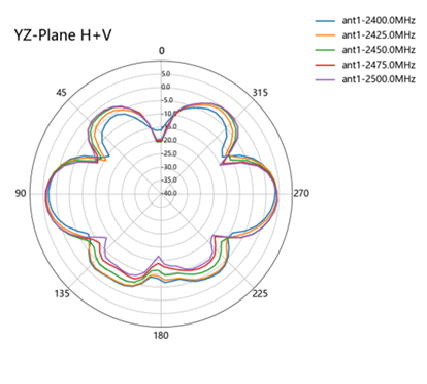

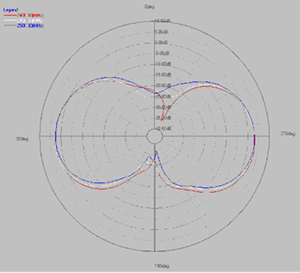

Performance Data: V Plane |
 |
 |
 |
| Model Name | MGA-DO-S4A | MGA-LRS-5R-A | MGA-LO-S7A |
|
 |
||
Frequencies Range |
Wi-Fi 2G |
Wi-Fi 5G/6G |
Wi-Fi 5G 2x2 MIMO |
2400~2500
|
5150~7125 |
5125~6425 |
|
Peak Gain |
4±0.5
|
8±0.5 |
17±0.5 |
VSWR |
≤ 1.92 |
≤ 1.92 |
≤ 1.92 |
Polarization |
Vertical |
Vertical |
Horizontal / Vertical |
Radiation Pattern |
Omnidirectional |
Omnidirectional |
Directional |
Impedance |
50Ω |
50Ω |
50Ω |
Connector |
N-Type
|
N-Type
|
N-Type
|
Dimensions |
215mm*Ø22mm |
215mm*Ø22mm |
215mm*Ø22mm |
Operating Temperature |
-10°C to 60°C |
-40°C to 70°C |
-40°C to 70°C |
|---|---|---|---|
Weight
|
> 70g |
> 90g |
> 70g |

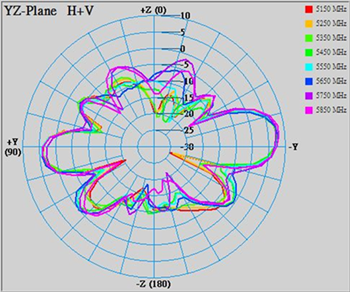

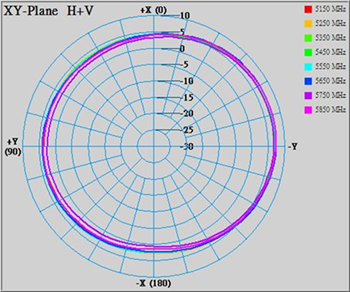

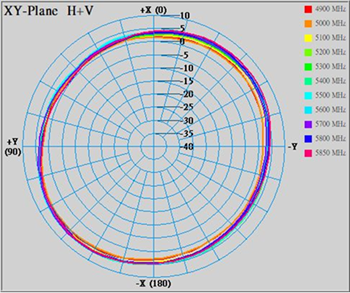

Performance Data: H Plane |
 |
 |
|

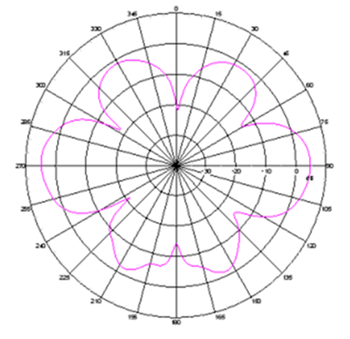

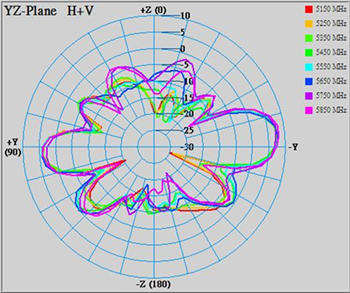

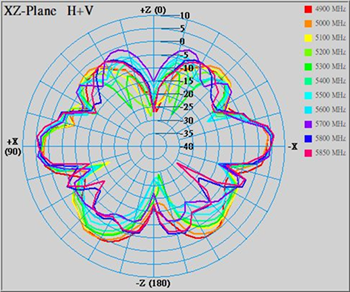

Performance Data: V Plane |
 |
 |
| Model Name | MGA-JRS-35R-A | MGA-LRS-6R-A | MGA-LRS-8R-A |
Frequencies Range |
Wi-Fi 2.5G/6G |
Wi-Fi 6G |
Wi-Fi 5G/6G |
2400~2500/5150~7125
|
5925~7125 |
5150~7125 |
|
Peak Gain |
3/5±0.5
|
6±0.5 |
8±0.5 |
VSWR |
≤ 1.92 |
≤ 1.92 |
≤ 1.92 |
Polarization |
Vertical |
Vertical |
Vertical |
Radiation Pattern |
Omnidirectional |
Omnidirectional |
Omnidirectional |
Impedance |
50Ω |
50Ω |
50Ω |
Connector |
N-Type
|
N-Type
|
N-Type
|
Dimensions |
215mm*Ø22mm |
215mm*Ø22mm |
200mm*Ø24mm |
Operating Temperature |
-40°C to 70°C |
-40°C to 70°C |
-40°C to 70°C |
|---|---|---|---|
Weight
|
> 70g |
> 70g |
> 90g |

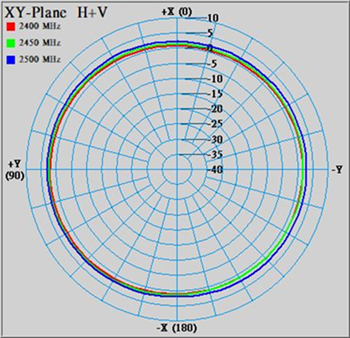

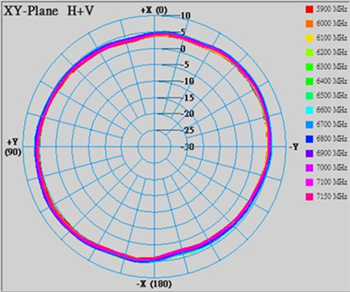

Performance Data: H Plane |
 |
 |
 |

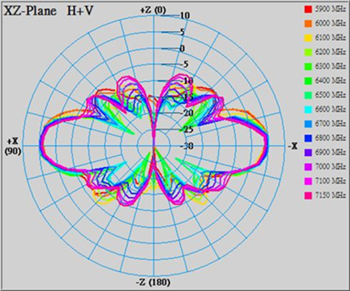

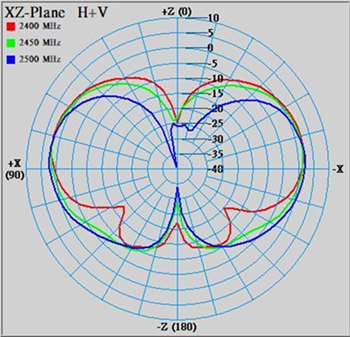

Performance Data: V Plane |
 |
 |
 |
