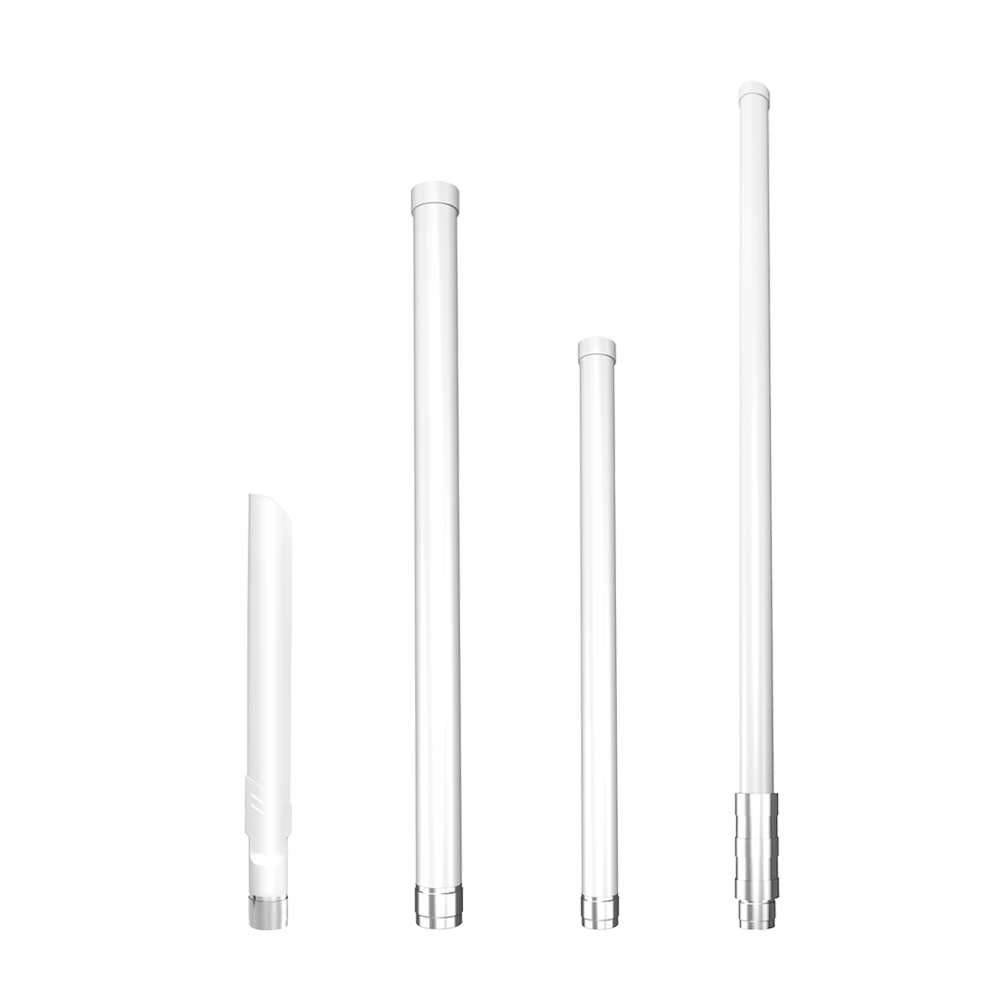

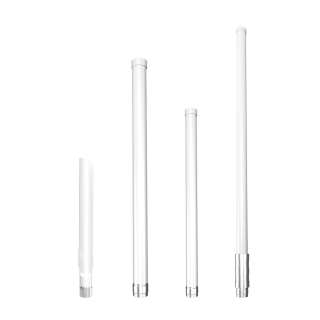

Outdoor Omni-Directional Antenna
Provide 360° seamless signal coverage
Outdoor Omni-Directional Antenna
| Frequencies | Wi-Fi 6/6E/7, LTE, 5G, LPWAN |
|---|---|
| Gain | 3dBi~8dBi |
| Connector | N Plug |
Key Features
-
360° Horizontal Coverage:
Eliminates the need for precise alignment, ensuring consistent signal reception from all directions. -
Multi-Band Support:
Compatible with next-gen standards including Wi-Fi 6/6E/7, 5G FR1, and LPWAN. -
Ruggedized Design:
Equipped with a standard N-type connector and weather-resistant housing to withstand extreme outdoor environments.
Application Scenarios
Smart City & Industrial IoT
Deployed on utility poles or factory exteriors to provide 360° seamless signal coverage for LPWAN, LTE, or 5G sensors.
Public Wi-Fi Hotspots
Ideal for wide-area outdoor connectivity in parks, campuses, or logistics hubs.
Maritime & Transportation
Mounted on vessels or transit stations to ensure stable omni-directional communication during movement
Signal Uniformity
Engineered to maintain stable gain (3dBi~8dBi) across all angles to prevent communication dead zones.
Installation Efficiency
Focuses on a "Plug & Play" design to reduce field deployment time and maintenance costs.
| Model Name |
MGA-FRS-6R-A |
MGA-CDO-D5A |
MGA-GRS-6R-A |
MGA-MRS-3R-A |
Frequencies Range |
N77 |
LTE all band |
N79 |
Sub-6 |
3300~4200 MHz
|
698~960/1710~2700 MHz |
4400~5000 MHz |
617~960/1575~6000 MHz |
|
Peak Gain |
6±0.5 dBi
|
0~3±0.5 dBi |
6±0.5 dBi |
0~3±0.5 dBi |
VSWR |
≤ 1.92 |
≤ 3 |
≤ 1.92 |
< 3 |
Polarization |
Vertical |
Vertical |
Vertical |
Vertical |
Radiation Pattern |
Omnidirectional |
Omnidirectional |
Omnidirectional |
Omnidirectional |
Impedance |
50Ω |
50Ω |
50Ω |
50Ω |
Connector |
N-Type
|
N-Type
|
N-Type
|
N-Type |
Dimensions |
215mm*Ø22mm |
215mm*Ø22mm |
215mm*Ø22mm |
215mm*Ø22mm |
Operating Temperature |
-40°C to 70°C |
-40°C to 70°C |
-40°C to 70°C |
-40°C to 70°C |
|---|---|---|---|---|
Weight
|
> 70g |
> 70g |
> 70g |
> 70g |
Performance Data: H Plane |
 |
 |
 |
 |
Performance Data: V Plane |
 |
 |
 |
 |
