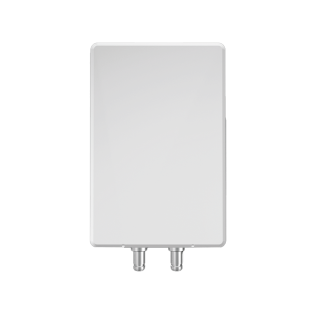

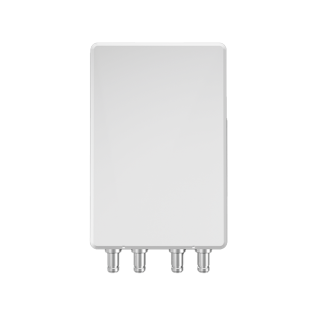

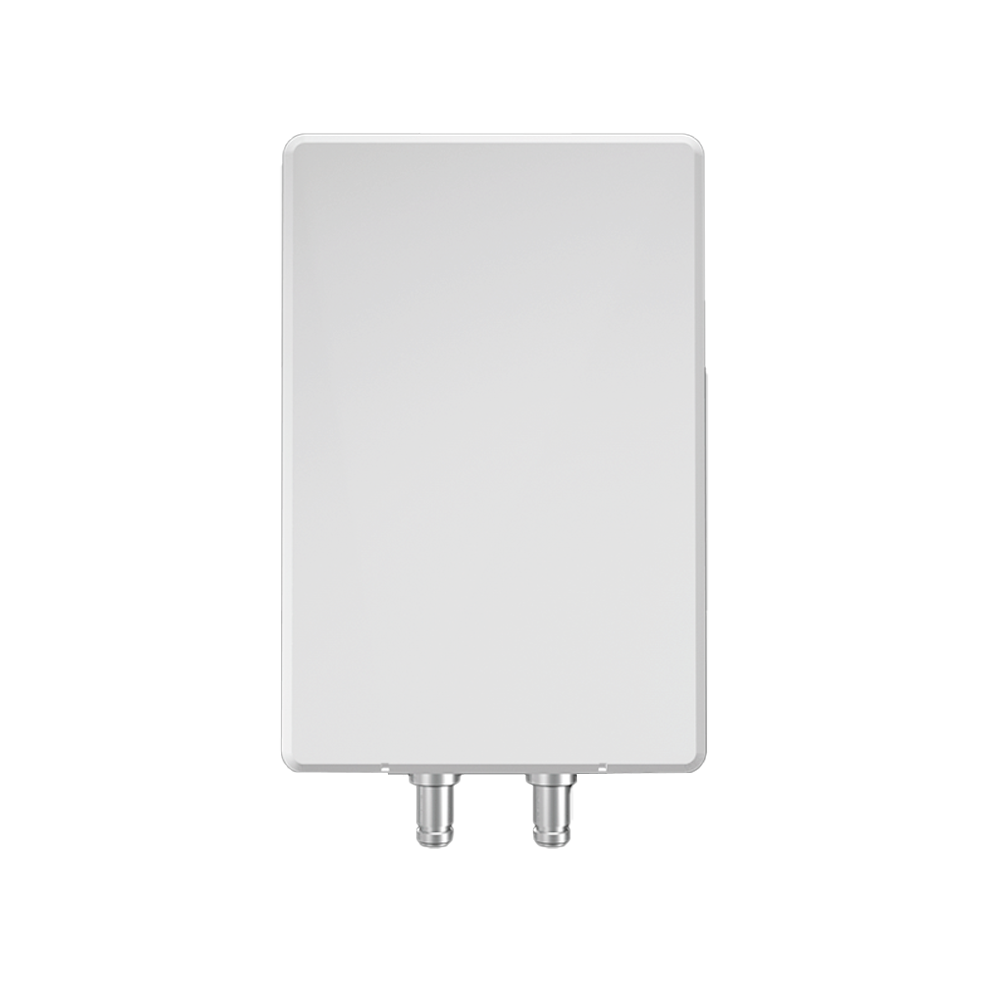

N77/78/79 Multi-band Sector Antenna
2x2 MIMO & 4x4 MIMO Series
M.gear 5G Private Network Sector Antennas: n77/78/79 Multi-band Support for High-Density Coverage
M.gear’s 2-Port and 4-Port Multi-Band Small Cell sectorized antennas are engineered for high-density coverage in demanding 5G private network environments. Supporting the full n77 (3300-4200 MHz), n78 (3300-3800 MHz), and n79 (4400-5000 MHz) bands, these antennas offer versatile deployment options for enterprises and mobile operators looking to upgrade their service areas to 5G.
Key Features
- Optimized Beamwidth Options: Available in 33°, 65°, 90°, and 120° configurations to provide precise signal targeting for warehouses, manufacturing floors, and public outdoor areas.
- 4x4 MIMO Performance: The 4-port series enables 4x4 MIMO for superior spatial multiplexing and signal robustness, delivering high data throughput with gains up to 14.5 dBi.
- Broad Vendor Compatibility: Equipped with standard N-type connectors, ensuring seamless integration with a wide range of RAN radio units and Base Transceiver Station (BTS) units.
- Durable & Weather-Resistant: Constructed with high-quality ASA materials to ensure long-term reliability in harsh environments.
| Technical Specifications Summary | 2x2 Sector Series | 4x4 Sector Series |
|---|---|---|
| Frequency Support |
n77 / n78 / n79 |
n77 / n78 / n79 |
| Max Gain | Up to 18 dBi | Up to 14.5 dBi |
| Polarization | ±45° | ±45° |
| Connectors | 2 x N (F) | 4 x N (F) |
